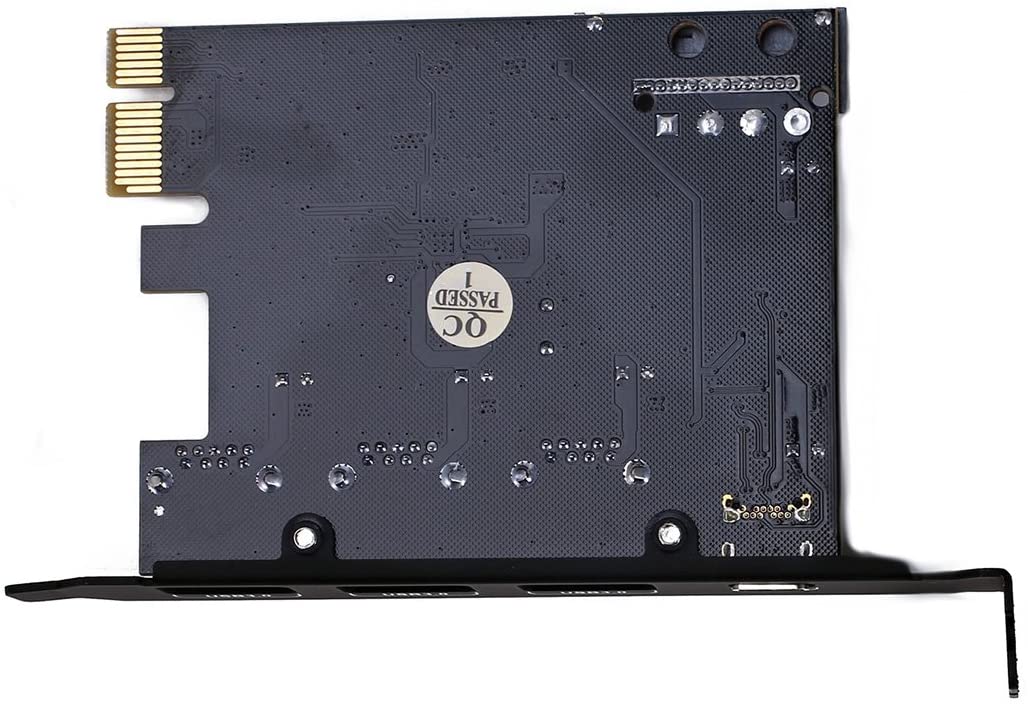

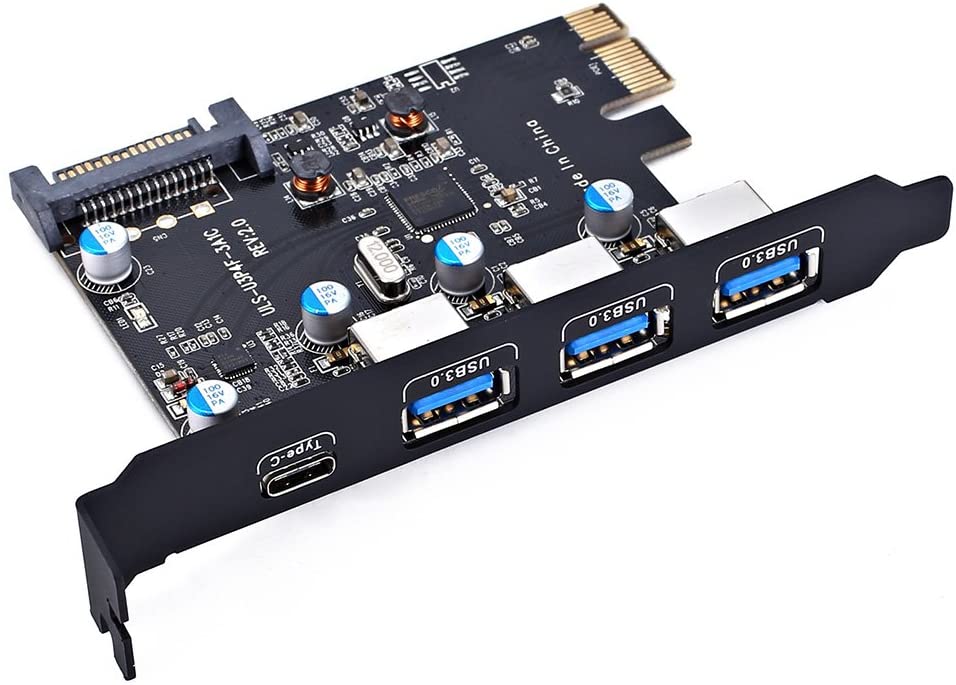

PCI-E to USB 3.0 Type C +3 Type A Expansion Card - Interface USB 3.0 4-Port Express Card Desktop with 15 pin SATA Power Connector
Extend with 1 USB 3.0 Type C, 3 Type A downstream ports for standard desktop PC
Support UASP:70% Faster than traditional USB 3.0 with UASP. The UASP Transfer Protocol only can accelerate read and write speed of SSD hard disk
Compliant with USB 3.0 specification.
Compatible with USB 2.0 & 1.1 specification.
Date transfer rates up to 5.0Gbps - 10x faster than USB2.0
Plug & play and hot swapping capability.
Bus-powered mode and no external power required for most of peripherals.
Windows XP, Vista and Windows 7(with included drivers)
Windows 8/10-No additional drivers are needed for Win8/10, it has built-in support for the FL1100 chipset
If your PC's power supply unit only has free 4pin Molex plugs left, please use the enclosed 4pin Molex to SATA converter to power the card. Please make sure the power cable strand colors match each other when connecting to the power augmentation, as to avoid faulty currents.
If there is no free 15pin SATA plug available in your PC, please use the enclosed 15pin to 2x 15pin SATA Y-cable.
Internal USB3.0 20PIN Connector need work with USB3.0 20PIN Adapter to Achieve 2x USB3.0 Hosts - USB3.0 20PIN Adapter is not included in Package
To ensure the PCI Express Card works properly, please first connect the PCI Express Card to your PC's power supply.
Aggregate transfer speed up to 500 MB/s (500 MB/s in total for the whole). For Oculus Rift users, it is recommended to purchase two PCI-E cards for multiple sensors.
This PCI-E card is not recommended to Kinect 2 users.

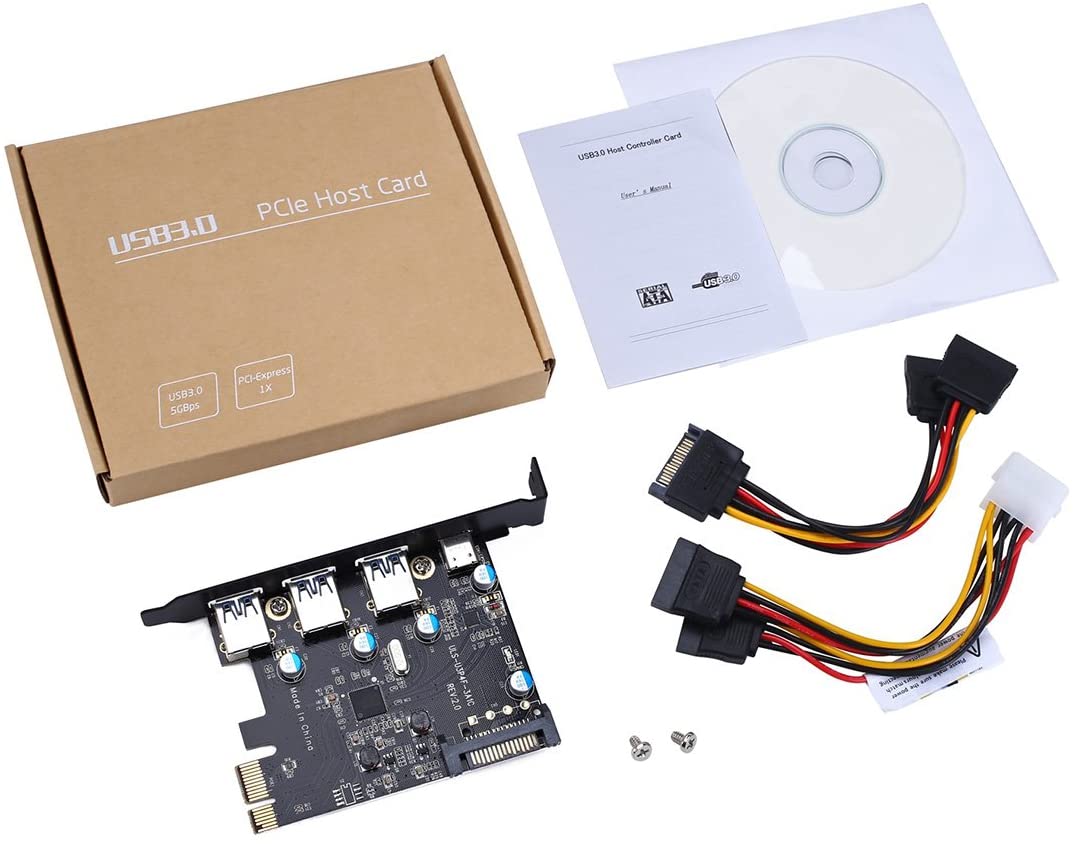

1x USB3.0 PCI-E expansion card
1x SATA to 4 Pin Molex Power Converter (the cable in older computers without 15pin SATA power connector is used to 4pin convert Molex to SATA ports)
1x 15pin to 2x 15pin SATA Y-cable
1x CD Driver
1x Mounting Screw
1x User's Manual
